MiniMind-V: 1 hour training of a 26M parameter visual language model

MiniMind-V is an open source project, hosted on GitHub, designed to help users train a lightweight visual language model (VLM) with only 26 million parameters in less than an hour. It is based on the MiniMind language model , the new visual coder and feature projection module , support for image and text joint processing . The project provides complete code from dataset cleaning to model inference, with a training cost as low as about 1.3 RMB for a single GPU (e.g., NVIDIA 3090). MiniMind-V emphasizes simplicity and ease of use, with fewer than 50 lines of code changes, making it a suitable tool for developers to experiment with and learn about the process of constructing visual language models.

Function List

• Provides complete training code for 26 million parameter visual language models, supporting fast training on a single GPU.
• Using the CLIP visual coder, a 224×224 pixel image was processed to generate 196 visual tokens.
• Supports single and multi-image input, combined with text for dialog, image description or Q&A.
• Full process scripts for dataset cleaning, pre-training, and supervised fine-tuning (SFT) are included.
• Provides PyTorch native implementation, supports multi-card acceleration, and is highly compatible.
• Includes a download of model weights to support the Hugging Face and ModelScope platforms.
• Provides a web interface and command line reasoning for easy testing of model effects.
• Support for the wandb tool to record losses and performance during training.

Using Help

The process of using MiniMind-V includes environment configuration, data preparation, model training and effect testing. Each step is described in detail below to help users get started quickly.

Environment Configuration

MiniMind-V requires a Python environment and GPU support. Here are the installation steps:

1. Cloning Code
   Run the following command in the terminal to download the project code:

   git clone https://github.com/jingyaogong/minimind-v
   cd minimind-v


2. Installation of dependencies
   Project offers requirements.txt file containing the required libraries. Run the following command:

   pip install -r requirements.txt -i https://pypi.tuna.tsinghua.edu.cn/simple


   Python 3.9 or above is recommended. Ensure that PyTorch supports CUDA (if you have a GPU). This can be verified by running the following code:

   import torch
   print(torch.cuda.is_available())


   exports True Indicates that the GPU is available.

3. Download CLIP Models
   MiniMind-V uses the CLIP model (clip-vit-base-patch16) as a visual encoder. Run the following command to download and place the ./model/vision_model::

   git clone https://huggingface.co/openai/clip-vit-base-patch16 ./model/vision_model


   Also available for download from ModelScope:

   git clone https://www.modelscope.cn/models/openai-mirror/clip-vit-base-patch16 ./model/vision_model


4. Download the base language model weights
   MiniMind-V is based on the MiniMind language model, which requires downloading the language model weights to the ./out Catalog. Example:

   wget https://huggingface.co/jingyaogong/MiniMind2-V-PyTorch/blob/main/lm_512.pth -P ./out


   or download lm_768.pth, depending on the model configuration.

Data preparation

MiniMind-V uses about 570,000 pre-trained images and 300,000 command fine-tuning data with about 5 GB of storage space. the procedure is as follows:

1. Creating a dataset catalog
   In the project root directory, create the ./dataset Folder:

   mkdir dataset


2. Download Dataset
   Download a dataset from Hugging Face or ModelScope containing the *.jsonl Q&A data and *images Picture data:
   • Hugging Face: https://huggingface.co/datasets/jingyaogong/minimind-v_dataset
   • ModelScope: https://www.modelscope.cn/datasets/gongjy/minimind-v_dataset
     Download and unzip the image data to ./dataset::

   unzip pretrain_images.zip -d ./dataset
   unzip sft_images.zip -d ./dataset


3. Validation Dataset
   assure ./dataset Contains the following files:
   • pretrain_vlm_data.jsonl: Pre-training data, approximately 570,000 entries.
   • sft_vlm_data.jsonl: Single figure fine-tuning data, approximately 300,000 entries.
   • sft_vlm_data_multi.jsonl: Multi-map fine-tuning data, approximately 13,600 entries.
   • Image folder: contains image files for pre-training and fine-tuning.

model training

MiniMind-V training is categorized into pre-training and supervised fine-tuning, and supports single or multi-card acceleration.

1. Configuration parameters
   compiler ./model/LMConfig.py, set the model parameters. Example:
   • Miniatures:dim=512, n_layers=8
   • Medium model:dim=768, n_layers=16
     These parameters determine the model size and performance.
2. pre-training
   Run pre-training scripts to learn image description capabilities:

   python train_pretrain_vlm.py --epochs 4


   The output weights are saved as ./out/pretrain_vlm_512.pth(or 768.pthThe CLIP model is frozen.) A single NVIDIA 3090 takes about 1 hour to complete 1 epoch. freezes the CLIP model and trains only the projection layer and the last layer of the language model.

3. Supervised Fine Tuning (SFT)
   Fine-tuning using pre-trained weights to optimize conversational capabilities:

   python train_sft_vlm.py --epochs 4


   The output weights are saved as ./out/sft_vlm_512.pth. This step trains the projection layer and the language model with all parameters.

4. Doka training (optional)
   If you have N graphics cards, use the following command to accelerate:

   torchrun --nproc_per_node N train_pretrain_vlm.py --epochs 4


   interchangeability train_pretrain_vlm.py For other training scripts (e.g. train_sft_vlm.py).

5. Monitor training
   Training losses can be recorded using wandb:

   python train_pretrain_vlm.py --epochs 4 --use_wandb


   View real-time data on the official wandb website.

Effectiveness Test

Once training is complete, the model can be tested for image dialog capabilities.

1. command-line reasoning
   Run the following command to load the model:

   python eval_vlm.py --load 1 --model_mode 1


   • --load 1: Load the transformers format model from Hugging Face.
   • --load 0: from ./out Load PyTorch weights.
   • --model_mode 1: Testing fine-tuned models;0 Testing pre-trained models.

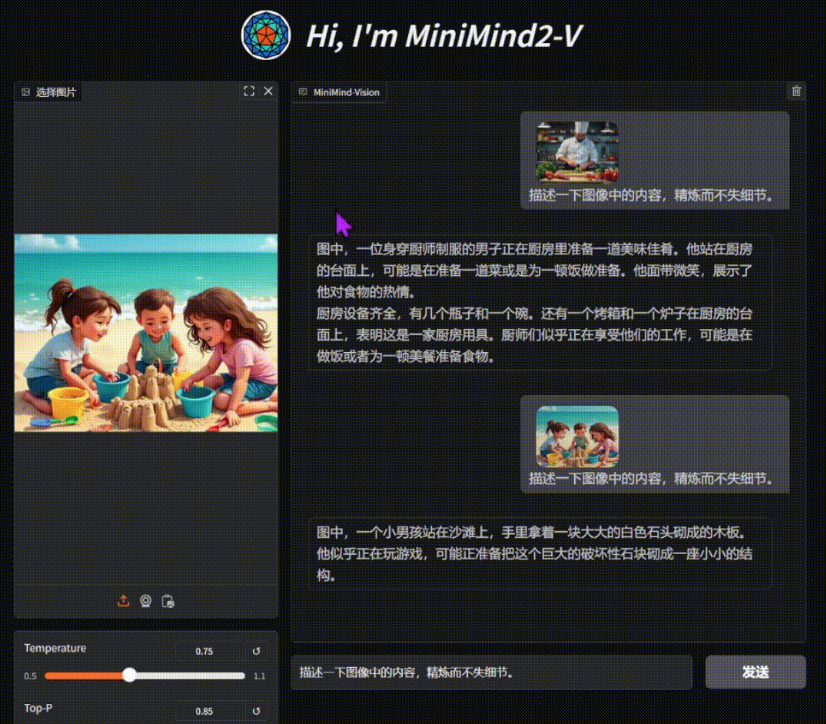

2. Web Interface Testing
   Launch the web interface:

   python web_demo_vlm.py


   interviews http://localhost:8000, upload an image and enter text to test.

3. input format
   MiniMind-V uses 196 @@@ Placeholders represent an image. Example:

   @@@...@@@\n这张图片是什么内容？


   Example of multi-image input:

   @@@...@@@\n第一张图是什么？\n@@@...@@@\n第二张图是什么？


4. Download Pre-training Weights
   If you don't train, you can just download the official weights:
   • PyTorch format:https://huggingface.co/jingyaogong/MiniMind2-V-PyTorch
   • Transformers format:https://huggingface.co/collections/jingyaogong/minimind-v-67000833fb60b3a2e1f3597d

caveat

• Recommended video memory 24GB (e.g. RTX 3090). If video memory is insufficient, reduce the batch size (batch_size).
• Ensuring that the dataset path is correct.*.jsonl and image files need to be placed in the ./datasetThe
• Freezing CLIP models during training reduces arithmetic requirements.
• Multi-image dialogues have limited effectiveness, and it is recommended to prioritize testing single-image scenarios.

application scenario

1. AI algorithmic learning
   MiniMind-V provides concise visual language modeling code suitable for students to understand cross-modal modeling principles. Users can modify the code to experiment with different parameters or data sets.
2. Rapid Prototyping
   Developers can prototype image dialog applications based on MiniMind-V. It is lightweight and efficient, and is suitable for low-computing devices such as PCs or embedded systems. It is lightweight and efficient, and is suitable for low-computing-power devices such as PCs or embedded systems.
3. Education and training tools
   Colleges and universities can use MiniMind-V in AI courses to show the whole process of model training. The code is clearly commented and suitable for classroom practice.
4. Low-cost experiments
   The project training cost is low, suitable for teams with limited budget to test the effect of multimodal models, without the need for high-performance servers.

QA

1. What size images does MiniMind-V support?
   Default processing is 224×224 pixels, limited by the CLIP model. Dataset images may be compressed to 128×128 to save space. Larger resolution CLIP models may be tried in the future.
2. How much time does it take to train?
   On a single NVIDIA 3090, 1 epoch of pre-training takes about 1 hour, with fine-tuning a bit faster. The exact time varies depending on the hardware and the amount of data.
3. Can I just fine-tune it without pre-training?
   Can. Download the official pre-training weights directly and run train_sft_vlm.py Fine-tuning.
4. What languages are supported?
   Mainly supports Chinese and English, the effect depends on the dataset. Users can extend other languages by fine-tuning.
5. How well does the multi-image dialog work?
   The current multi-image dialog capability is limited, and it is recommended that single-image scenarios be prioritized. Improvements can be made in the future with larger models and datasets.
